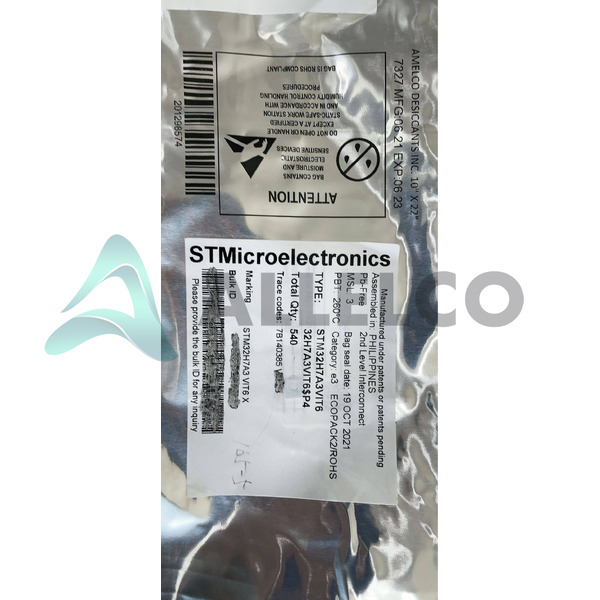

STM32H7A3VIT6 tekniska specifikationer
STMicroelectronics - STM32H7A3VIT6 Tekniska specifikationer, attribut, parametrar och delar med liknande specifikationer som STMicroelectronics - STM32H7A3VIT6
| Produktattribut | Attributvärde | |
|---|---|---|
| Tillverkare | STMicroelectronics | |
| Spänning - Tillförsel (Vcc / Vdd) | 1.62V ~ 3.6V | |
| Leverantörs Device Package | 100-LQFP (14x14) | |
| Fart | 280MHz | |
| Serier | STM32H7 | |
| RAM-storlek | 1.4M x 8 | |
| Programminne Typ | FLASH | |
| Programminnesstorlek | 2MB (2M x 8) | |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | |
| Förpackning / Fodral | 100-LQFP | |
| Paket | Tray |
| Produktattribut | Attributvärde | |
|---|---|---|
| Oscillatortyp | Internal | |
| Driftstemperatur | -40°C ~ 85°C (TA) | |
| Antal I / O | 80 | |
| Monteringstyp | Surface Mount | |
| EEPROM-storlek | - | |
| Datakonverterare | A/D 16x16b; D/A 3x12b | |
| Kärnstorlek | 32-Bit Single-Core | |
| Core Processor | ARM® Cortex®-M7 | |
| Anslutningar | CANbus, EBI/EMI, HDMI-CEC, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | |
| Basproduktnummer | STM32H7A3 |
De tre delarna till höger har liknande specifikationer som STMicroelectronics STM32H7A3VIT6.
| Produktattribut |  |
 |
 |
 |
|---|---|---|---|---|
| Artikelnummer | STM32H7A3VIT6 | STM32L010C6T6 | STM32H7A3VGT6 | STM32H757ZIY6TR |
| Tillverkare | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Oscillatortyp | Internal | Internal | External, Internal | Internal |
| Förpackning / Fodral | 100-LQFP | 48-LQFP | 100-LQFP | 156-UFBGA, WLCSP |
| Anslutningar | CANbus, EBI/EMI, HDMI-CEC, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | I²C, IrDA, SPI, UART/USART | CANbus, EBI/EMI, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Programminnesstorlek | 2MB (2M x 8) | 32KB (32K x 8) | 1MB (1M x 8) | 2MB (2M x 8) |
| Spänning - Tillförsel (Vcc / Vdd) | 1.62V ~ 3.6V | 1.8V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V |
| Programminne Typ | FLASH | FLASH | FLASH | FLASH |
| Antal I / O | 80 | 38 | 80 | 99 |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M0+ | ARM® Cortex®-M7 | ARM® Cortex®-M4/M7 |
| EEPROM-storlek | - | 256 x 8 | - | - |
| Leverantörs Device Package | 100-LQFP (14x14) | 48-LQFP (7x7) | 100-LQFP (14x14) | 156-WLCSP (4.96x4.64) |
| Driftstemperatur | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Monteringstyp | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Serier | STM32H7 | STM32L0 | STM32H7 | STM32H7 |
| Kärnstorlek | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit | 32-Bit Dual-Core |
| Basproduktnummer | STM32H7A3 | STM32L010 | - | STM32H757 |
| Paket | Tray | Tray | Bulk | Tape & Reel (TR) |
| Datakonverterare | A/D 16x16b; D/A 3x12b | A/D 10x12b | A/D 16x8/16b Sigma-Delta; D/A 3x12b | A/D 23x16b; D/A 2x12b |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Fart | 280MHz | 32MHz | 280MHz | 240MHz, 480MHz |
| RAM-storlek | 1.4M x 8 | 8K x 8 | 1.4M x 8 | 1M x 8 |
Ladda ner STM32H7A3VIT6 PDF -datablad och STMicroelectronics -dokumentation för STM32H7A3VIT6 - STMicroelectronics.
