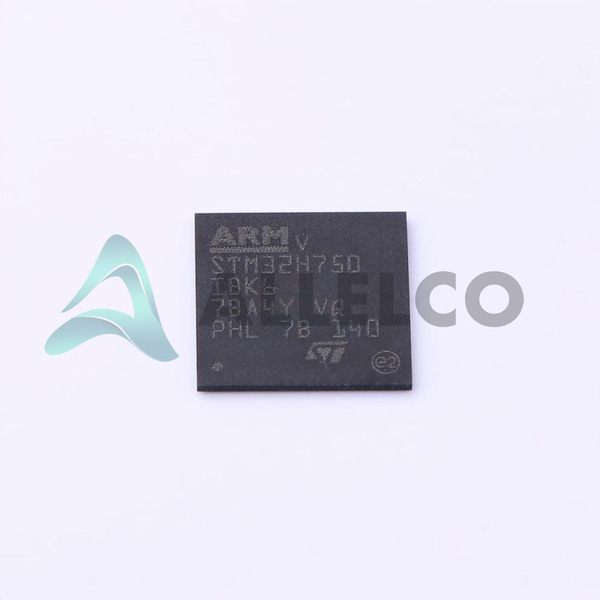

STM32H750IBK6 tekniska specifikationer
STMicroelectronics - STM32H750IBK6 Tekniska specifikationer, attribut, parametrar och delar med liknande specifikationer som STMicroelectronics - STM32H750IBK6
| Produktattribut | Attributvärde | |
|---|---|---|
| Tillverkare | STMicroelectronics | |
| Spänning - Tillförsel (Vcc / Vdd) | 1.62V ~ 3.6V | |
| Leverantörs Device Package | 176+25UFBGA (10x10) | |
| Fart | 480MHz | |
| Serier | STM32H7 | |
| RAM-storlek | 1M x 8 | |
| Programminne Typ | FLASH | |
| Programminnesstorlek | 128KB (128K x 8) | |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | |
| Förpackning / Fodral | 201-UFBGA | |
| Paket | Tray |
| Produktattribut | Attributvärde | |
|---|---|---|
| Oscillatortyp | Internal | |
| Driftstemperatur | -40°C ~ 85°C (TA) | |
| Antal I / O | 140 | |
| Monteringstyp | Surface Mount | |
| EEPROM-storlek | - | |
| Datakonverterare | A/D 36x16b; D/A 2x12b | |
| Kärnstorlek | 32-Bit Single-Core | |
| Core Processor | ARM® Cortex®-M7 | |
| Anslutningar | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | |
| Basproduktnummer | STM32H750 |
De tre delarna till höger har liknande specifikationer som STMicroelectronics STM32H750IBK6.
| Produktattribut |  |
 |
 |
|
|---|---|---|---|---|
| Artikelnummer | STM32H750IBK6 | STM32H745ZIT6 | STM32H753AII6 | STM32H747AII6 |
| Tillverkare | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Förpackning / Fodral | 201-UFBGA | 144-LQFP | 169-UFBGA | 169-UFBGA |
| Anslutningar | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG |
| Spänning - Tillförsel (Vcc / Vdd) | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V | 1.62V ~ 3.6V |
| Kärnstorlek | 32-Bit Single-Core | 32-Bit Dual-Core | 32-Bit Single-Core | 32-Bit Dual-Core |
| Driftstemperatur | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Datakonverterare | A/D 36x16b; D/A 2x12b | A/D 23x16b; D/A 2x12b | A/D 36x16b; D/A 2x12b | A/D 28x16b; D/A 2x12b |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M4/M7 | ARM® Cortex®-M7 | ARM® Cortex®-M4/M7 |
| Leverantörs Device Package | 176+25UFBGA (10x10) | 144-LQFP (20x20) | 169-UFBGA (7x7) | 169-UFBGA (7x7) |
| Paket | Tray | Tray | Tray | Tray |
| Programminne Typ | FLASH | FLASH | FLASH | FLASH |
| Monteringstyp | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Oscillatortyp | Internal | Internal | Internal | Internal |
| Antal I / O | 140 | 97 | 131 | 168 |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Serier | STM32H7 | STM32H7 | STM32H7 | STM32H7 |
| EEPROM-storlek | - | - | - | - |
| Basproduktnummer | STM32H750 | STM32H745 | STM32H753 | STM32H747 |
| Programminnesstorlek | 128KB (128K x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) |
| RAM-storlek | 1M x 8 | 1M x 8 | 1M x 8 | 1M x 8 |
| Fart | 480MHz | 240MHz, 480MHz | 480MHz | 240MHz, 480MHz |
Ladda ner STM32H750IBK6 PDF -datablad och STMicroelectronics -dokumentation för STM32H750IBK6 - STMicroelectronics.
