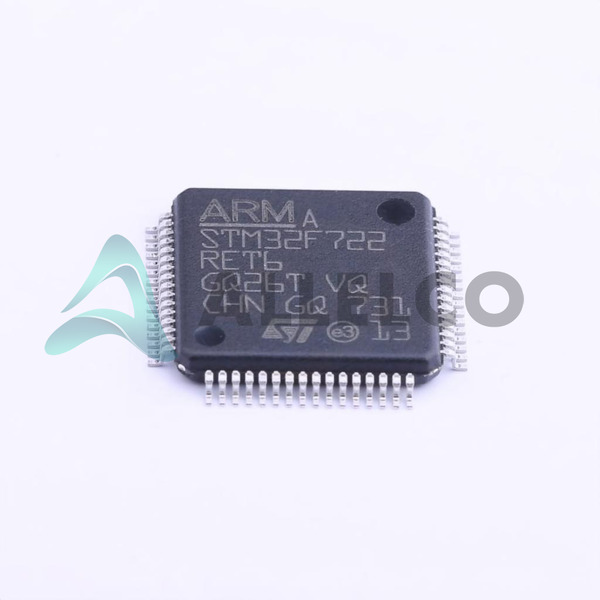

STM32F722RET6 tekniska specifikationer
STMicroelectronics - STM32F722RET6 Tekniska specifikationer, attribut, parametrar och delar med liknande specifikationer som STMicroelectronics - STM32F722RET6
| Produktattribut | Attributvärde | |
|---|---|---|
| Tillverkare | STMicroelectronics | |
| Spänning - Tillförsel (Vcc / Vdd) | 1.7V ~ 3.6V | |
| Leverantörs Device Package | 64-LQFP (10x10) | |
| Fart | 216MHz | |
| Serier | STM32F7 | |
| RAM-storlek | 256K x 8 | |
| Programminne Typ | FLASH | |
| Programminnesstorlek | 512KB (512K x 8) | |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | |
| Förpackning / Fodral | 64-LQFP | |
| Paket | Tray |
| Produktattribut | Attributvärde | |
|---|---|---|
| Oscillatortyp | Internal | |
| Driftstemperatur | -40°C ~ 85°C (TA) | |
| Antal I / O | 50 | |
| Monteringstyp | Surface Mount | |
| EEPROM-storlek | - | |
| Datakonverterare | A/D 16x12b; D/A 2x12b | |
| Kärnstorlek | 32-Bit Single-Core | |
| Core Processor | ARM® Cortex®-M7 | |
| Anslutningar | CANbus, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | |
| Basproduktnummer | STM32F722 |
De tre delarna till höger har liknande specifikationer som STMicroelectronics STM32F722RET6.
| Produktattribut |  |
 |
 |
|
|---|---|---|---|---|
| Artikelnummer | STM32F722RET6 | STM32F722ZET6TR | STM32F723IEK6 | STM32F722IEK6 |
| Tillverkare | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Förpackning / Fodral | 64-LQFP | 144-LQFP | 176-UFBGA | 176-UFBGA |
| Datakonverterare | A/D 16x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b |
| Spänning - Tillförsel (Vcc / Vdd) | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V |
| Driftstemperatur | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Programminnesstorlek | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Programminne Typ | FLASH | FLASH | FLASH | FLASH |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Antal I / O | 50 | 114 | 138 | 140 |
| Serier | STM32F7 | STM32F7 | STM32F7 | STM32F7 |
| EEPROM-storlek | - | - | - | - |
| Basproduktnummer | STM32F722 | STM32F722 | STM32F723 | STM32F722 |
| Anslutningar | CANbus, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, UART/USART, USB |
| Monteringstyp | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| RAM-storlek | 256K x 8 | 256K x 8 | 256K x 8 | 256K x 8 |
| Oscillatortyp | Internal | Internal | Internal | Internal |
| Core Processor | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 | ARM® Cortex®-M7 |
| Fart | 216MHz | 216MHz | 216MHz | 216MHz |
| Paket | Tray | Tape & Reel (TR) | Tray | Tray |
| Leverantörs Device Package | 64-LQFP (10x10) | 144-LQFP (20x20) | 176-UFBGA (10x10) | 176-UFBGA (10x10) |
| Kärnstorlek | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
Ladda ner STM32F722RET6 PDF -datablad och STMicroelectronics -dokumentation för STM32F722RET6 - STMicroelectronics.
