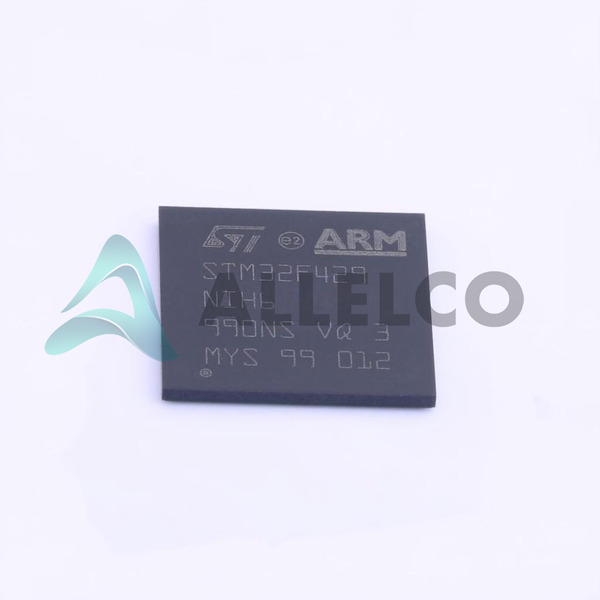

STM32F429NIH6 tekniska specifikationer
STMicroelectronics - STM32F429NIH6 Tekniska specifikationer, attribut, parametrar och delar med liknande specifikationer som STMicroelectronics - STM32F429NIH6
| Produktattribut | Attributvärde | |
|---|---|---|
| Tillverkare | STMicroelectronics | |
| Spänning - Tillförsel (Vcc / Vdd) | 1.8V ~ 3.6V | |
| Leverantörs Device Package | 216-TFBGA (13x13) | |
| Fart | 180MHz | |
| Serier | STM32F4 | |
| RAM-storlek | 256K x 8 | |
| Programminne Typ | FLASH | |
| Programminnesstorlek | 2MB (2M x 8) | |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | |
| Förpackning / Fodral | 216-TFBGA | |
| Paket | Tray |
| Produktattribut | Attributvärde | |
|---|---|---|
| Oscillatortyp | Internal | |
| Driftstemperatur | -40°C ~ 85°C (TA) | |
| Antal I / O | 168 | |
| Monteringstyp | Surface Mount | |
| EEPROM-storlek | - | |
| Datakonverterare | A/D 24x12b; D/A 2x12b | |
| Kärnstorlek | 32-Bit Single-Core | |
| Core Processor | ARM® Cortex®-M4 | |
| Anslutningar | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG | |
| Basproduktnummer | STM32F429 |
De tre delarna till höger har liknande specifikationer som STMicroelectronics STM32F429NIH6.
| Produktattribut |  |
 |
 |
 |
|---|---|---|---|---|
| Artikelnummer | STM32F429NIH6 | STM32F429IIH6 | STM32F429IIT6 | STM32F429VGT6 |
| Tillverkare | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Paket | Tray | Tray | Tray | Tray |
| Kärnstorlek | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| EEPROM-storlek | - | - | - | - |
| Spänning - Tillförsel (Vcc / Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Driftstemperatur | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Basproduktnummer | STM32F429 | STM32F429 | STM32F429 | STM32F429 |
| Oscillatortyp | Internal | Internal | Internal | Internal |
| Monteringstyp | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Förpackning / Fodral | 216-TFBGA | 201-UFBGA | 176-LQFP | 100-LQFP |
| Anslutningar | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Programminne Typ | FLASH | FLASH | FLASH | FLASH |
| Datakonverterare | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 24x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b |
| Programminnesstorlek | 2MB (2M x 8) | 2MB (2M x 8) | 2MB (2M x 8) | 1MB (1M x 8) |
| Leverantörs Device Package | 216-TFBGA (13x13) | 176+25UFBGA (10x10) | 176-LQFP (24x24) | - |
| Serier | STM32F4 | STM32F4 | STM32F4 | STM32F4 |
| Fart | 180MHz | 180MHz | 180MHz | 180MHz |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| RAM-storlek | 256K x 8 | 256K x 8 | 256K x 8 | 256K x 8 |
| Antal I / O | 168 | 140 | 140 | 82 |
Ladda ner STM32F429NIH6 PDF -datablad och STMicroelectronics -dokumentation för STM32F429NIH6 - STMicroelectronics.
