STM32F415OGY6TR tekniska specifikationer
STMicroelectronics - STM32F415OGY6TR Tekniska specifikationer, attribut, parametrar och delar med liknande specifikationer som STMicroelectronics - STM32F415OGY6TR
| Produktattribut | Attributvärde | |
|---|---|---|
| Tillverkare | STMicroelectronics | |
| Spänning - Tillförsel (Vcc / Vdd) | 1.8V ~ 3.6V | |
| Leverantörs Device Package | 90-WLCSP (4.22x3.97) | |
| Fart | 168MHz | |
| Serier | STM32F4 | |
| RAM-storlek | 192K x 8 | |
| Programminne Typ | FLASH | |
| Programminnesstorlek | 1MB (1M x 8) | |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | |

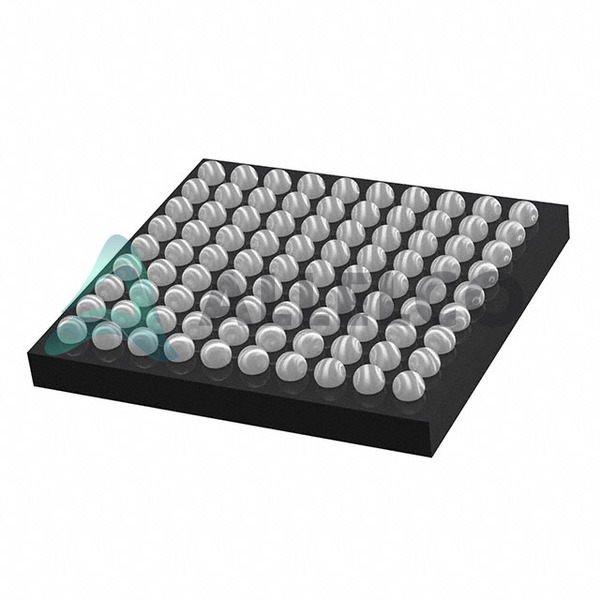

| Förpackning / Fodral | 90-UFBGA, WLCSP | |
| Paket | Tape & Reel (TR) |
| Produktattribut | Attributvärde | |
|---|---|---|
| Oscillatortyp | Internal | |
| Driftstemperatur | -40°C ~ 85°C (TA) | |
| Antal I / O | 72 | |
| Monteringstyp | Surface Mount | |
| EEPROM-storlek | - | |
| Datakonverterare | A/D 13x12b; D/A 2x12b | |
| Kärnstorlek | 32-Bit Single-Core | |
| Core Processor | ARM® Cortex®-M4 | |
| Anslutningar | CANbus, EBI/EMI, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG | |
| Basproduktnummer | STM32F415 |
De tre delarna till höger har liknande specifikationer som STMicroelectronics STM32F415OGY6TR.
| Produktattribut |  |
 |
 |
 |
|---|---|---|---|---|
| Artikelnummer | STM32F415OGY6TR | STM32F413ZHT6 | STM32F413VHT6 | STM32F415VGT6 |
| Tillverkare | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Driftstemperatur | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| kringutrustning | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Anslutningar | CANbus, EBI/EMI, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, I²C, IrDA, LINbus, MMC/SDIO, QSPI, SAI, SPI, UART/USART, USB OTG | CANbus, EBI/EMI, I²C, IrDA, LINbus, SPI, UART/USART, USB OTG |
| Förpackning / Fodral | 90-UFBGA, WLCSP | 144-LQFP | 100-LQFP | 100-LQFP |
| Datakonverterare | A/D 13x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b | A/D 16x12b; D/A 2x12b |
| Programminnesstorlek | 1MB (1M x 8) | 1.5MB (1.5M x 8) | 1.5MB (1.5M x 8) | 1MB (1M x 8) |
| Antal I / O | 72 | 114 | 81 | 82 |
| Fart | 168MHz | 100MHz | 100MHz | 168MHz |
| Programminne Typ | FLASH | FLASH | FLASH | FLASH |
| Kärnstorlek | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Leverantörs Device Package | 90-WLCSP (4.22x3.97) | 144-LQFP (20x20) | 100-LQFP (14x14) | 100-LQFP (14x14) |
| Oscillatortyp | Internal | Internal | Internal | Internal |
| Paket | Tape & Reel (TR) | Tray | Tray | Tray |
| EEPROM-storlek | - | - | - | - |
| Basproduktnummer | STM32F415 | STM32F413 | STM32F413 | STM32F415 |
| RAM-storlek | 192K x 8 | 320K x 8 | 320K x 8 | 192K x 8 |
| Serier | STM32F4 | STM32F4 | STM32F4 | STM32F4 |
| Spänning - Tillförsel (Vcc / Vdd) | 1.8V ~ 3.6V | 1.7V ~ 3.6V | 1.7V ~ 3.6V | 1.8V ~ 3.6V |
| Monteringstyp | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
Ladda ner STM32F415OGY6TR PDF -datablad och STMicroelectronics -dokumentation för STM32F415OGY6TR - STMicroelectronics.
