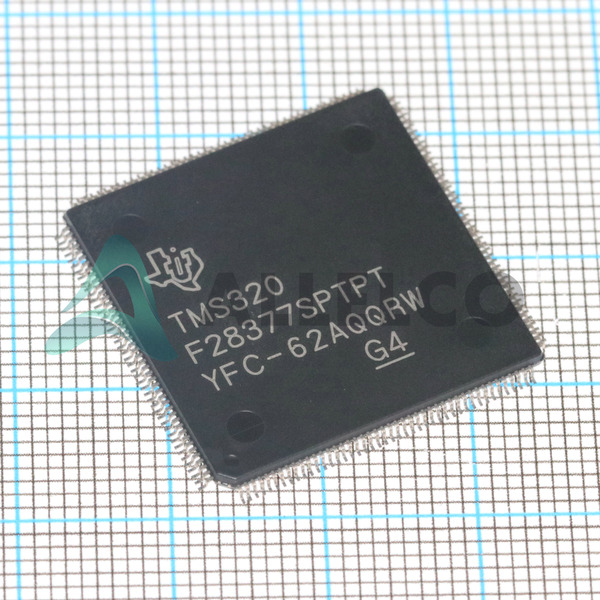

TMS320F28377SPTPS tekniska specifikationer
Texas Instruments - TMS320F28377SPTPS Tekniska specifikationer, attribut, parametrar och delar med liknande specifikationer som Texas Instruments - TMS320F28377SPTPS
| Produktattribut | Attributvärde | |
|---|---|---|
| Tillverkare | Texas Instruments | |
| Spänning - Tillförsel (Vcc / Vdd) | 1.14V ~ 3.47V | |
| Leverantörs Device Package | 176-HLQFP (24x24) | |
| Fart | 200MHz | |
| Serier | C2000™ C28x Delfino™, Functional Safety (FuSa) | |
| RAM-storlek | 82K x 16 | |
| Programminne Typ | FLASH | |
| Programminnesstorlek | 1MB (512K x 16) | |
| kringutrustning | DMA, POR, PWM, WDT | |
| Förpackning / Fodral | 176-LQFP Exposed Pad | |
| Paket | Tray |
| Produktattribut | Attributvärde | |
|---|---|---|
| Oscillatortyp | Internal | |
| Driftstemperatur | -40°C ~ 125°C (TJ) | |
| Antal I / O | 97 | |
| Monteringstyp | Surface Mount | |
| EEPROM-storlek | - | |
| Datakonverterare | A/D 20x12b, 20x16b; D/A 3x12b | |
| Kärnstorlek | 32-Bit Single-Core | |
| Core Processor | C28x | |
| Anslutningar | CANbus, EBI/EMI, I²C, McBSP, SCI, SPI, uPP, UART/USART, USB | |
| Basproduktnummer | TMS320 |
De tre delarna till höger har liknande specifikationer som Texas Instruments TMS320F28377SPTPS.
| Produktattribut |  |
 |
 |
|
|---|---|---|---|---|
| Artikelnummer | TMS320F28377SPTPS | TMS320F28377SZWTT | TMS320F28377SPZPT | TMS320F28377SPZPQ |
| Tillverkare | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Basproduktnummer | TMS320 | TMS320 | TMS320 | TMS320 |
| kringutrustning | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Datakonverterare | A/D 20x12b, 20x16b; D/A 3x12b | A/D 24x12b, 12x16b; D/A 3x12b | A/D 14x12b, 14x16b; D/A 3x12b | A/D 14x12b, 14x16b; D/A 3x12b |
| Programminne Typ | FLASH | FLASH | FLASH | FLASH |
| Oscillatortyp | Internal | Internal | Internal | Internal |
| Förpackning / Fodral | 176-LQFP Exposed Pad | 337-LFBGA | 100-TQFP Exposed Pad | 100-TQFP Exposed Pad |
| Kärnstorlek | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| RAM-storlek | 82K x 16 | 82K x 16 | 82K x 16 | 82K x 16 |
| Spänning - Tillförsel (Vcc / Vdd) | 1.14V ~ 3.47V | 1.14V ~ 3.47V | 1.14V ~ 3.47V | 1.14V ~ 3.47V |
| Core Processor | C28x | C28x | C28x | C28x |
| Anslutningar | CANbus, EBI/EMI, I²C, McBSP, SCI, SPI, uPP, UART/USART, USB | CANbus, EBI/EMI, I²C, McBSP, SCI, SPI, uPP, UART/USART, USB | CANbus, I²C, McBSP, SCI, SPI, uPP, UART/USART, USB | CANbus, I²C, McBSP, SCI, SPI, uPP, UART/USART, USB |
| EEPROM-storlek | - | - | - | - |
| Monteringstyp | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Driftstemperatur | -40°C ~ 125°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 105°C (TJ) | -40°C ~ 125°C (TA) |
| Antal I / O | 97 | 169 | 41 | 41 |
| Fart | 200MHz | 200MHz | 200MHz | 200MHz |
| Leverantörs Device Package | 176-HLQFP (24x24) | 337-NFBGA (16x16) | 100-HTQFP (14x14) | 100-HTQFP (14x14) |
| Paket | Tray | Tray | Tray | Tray |
| Programminnesstorlek | 1MB (512K x 16) | 1MB (512K x 16) | 1MB (512K x 16) | 1MB (512K x 16) |
| Serier | C2000™ C28x Delfino™, Functional Safety (FuSa) | C2000™ C28x Delfino™, Functional Safety (FuSa) | C2000™ C28x Delfino™, Functional Safety (FuSa) | Automotive, AEC-Q100, C2000™ C28x Delfino™, Functional Safety (FuSa) |
Ladda ner TMS320F28377SPTPS PDF -datablad och Texas Instruments -dokumentation för TMS320F28377SPTPS - Texas Instruments.
